产品描述

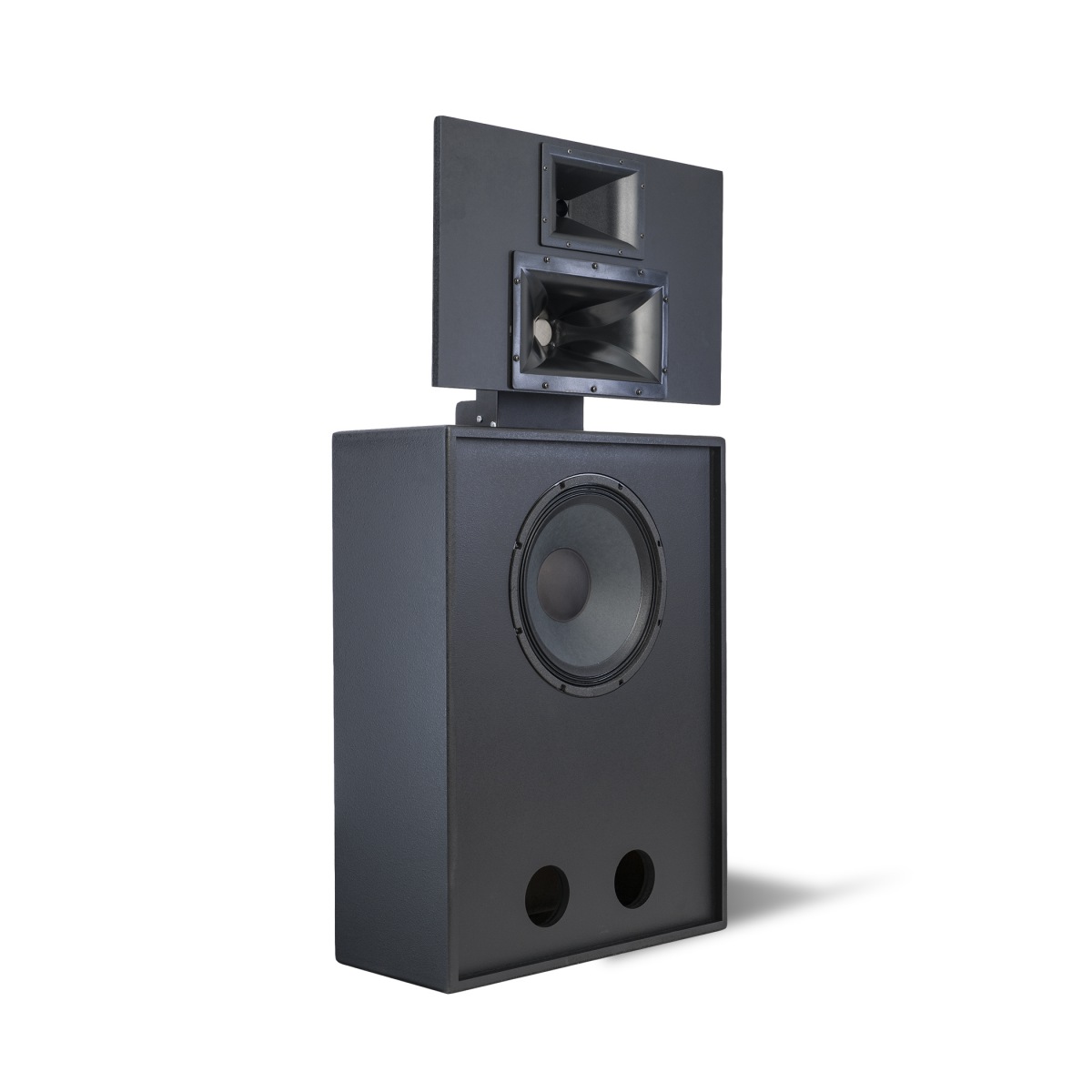

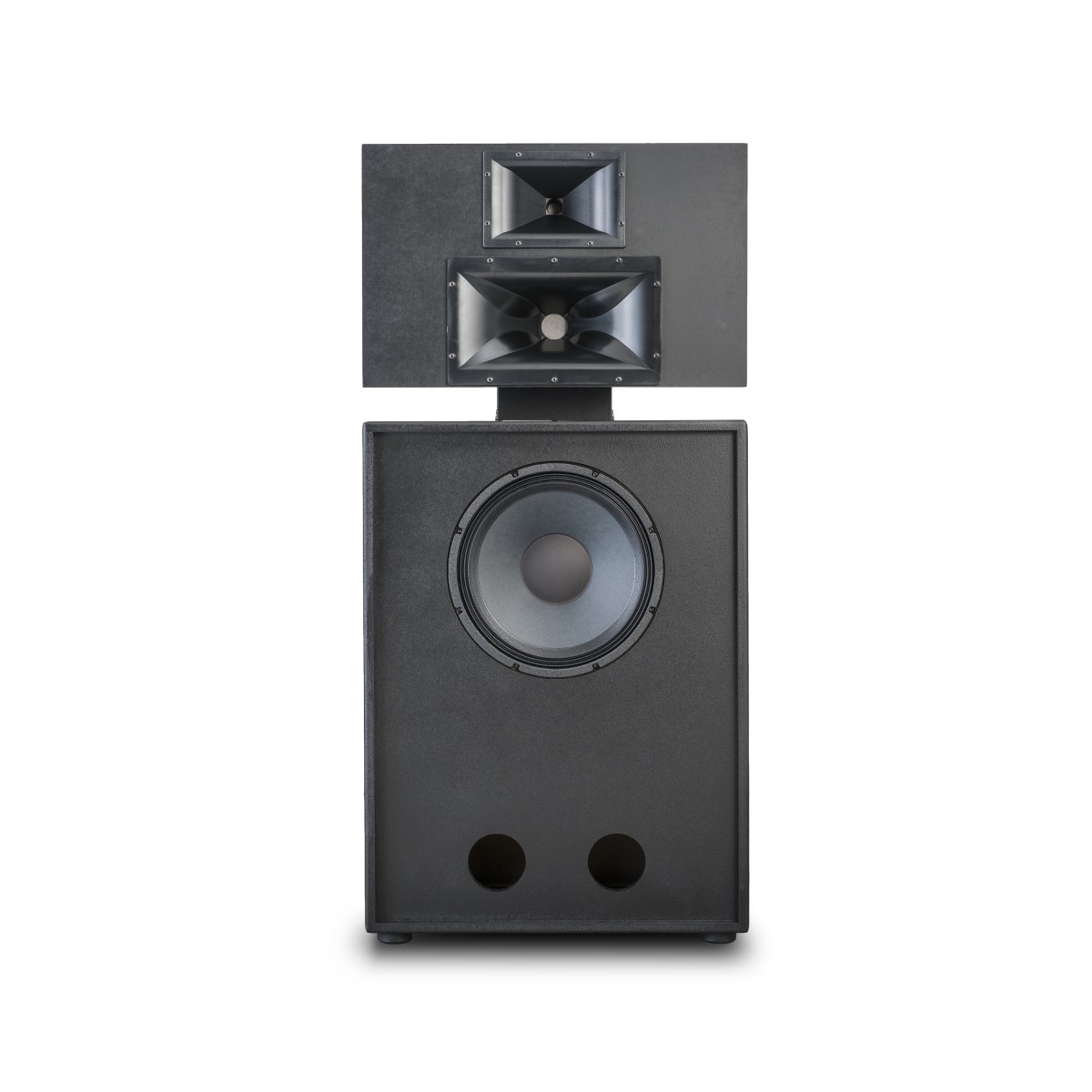

与多数三路幕后系统不同，KPT-335-M 的厚度为 12.25 英寸，是同类产品中最小巧的高性能产品之一。
KPT-335-M 外形小巧，作为高输出单 15 英寸三路系统，可为小型场所提供出色的音效。
它采用了 KPT-315-LF，可增强低音输出，以及与更大号 KPT-435-B 相同的 KPT-335 HF/MF 配置，增强关键的语音覆盖范围。

带有分频网络，支持单功放配置。

• 高输出单 15 英寸三路系统

• 厚度仅为 12.25 英寸

• 单功放配置

DESIGNED AND MADE IN THE USA

USING DOMESTIC AND IMPORTED COMPONENTS

In 1946, Paul W Klipsch, genius & maverick, hand-built his frst loudspeaker in a tin shed with the intention of bringing live music into his living room. Remember great sound? We do, too. Today, Klipsch’s cinema speaker enclosures are made in the USA, by proud craftsmen in Hope, Arkansas. Just like PWK intended.

产品概述：

Unlike many 3-way behind the screen systems, the KPT-335 is only 12.25” in depth,making it one of the most compact performers in its class. Engineered to savespace and deliver superior sound to smaller sized venues, the KPT-335 serves as a high output single 15” 3-way system. It features the KPT-315-LF for enhanced bass output. In order to reproduce the critical dialogue range, this system also featuresthe KPT-335-HF/MF, which consists of a K-510 Tractrix® horn, 2” throat compressiondriver and the K-703 Tractrix horn with a 1.75” titanium diaphragm.

Perfect for exhibitors who want to utilize a fully passive or bi-amplifed 3-way system in their auditoriums, the KPT-335 lets movie-goers experience the unbridled dynamics and intense realism only Klipsch cinema stage loudspeakers can deliver.

系统构成：

HF/MF： KPT-335-HF/MF-N

LF： KPT-315-LF

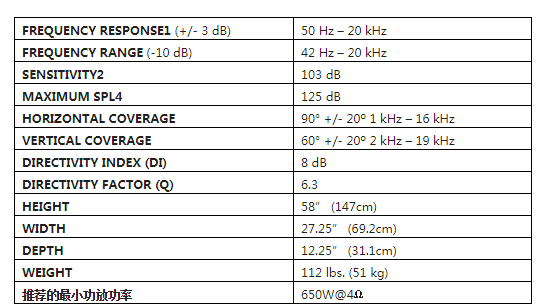

规格参数：

1. Frequency response behind a screen relative to X-curve and with active processing applied

2. SPL at 1M, half-space anechoic with 2.83V input

3. AES standard, continuous pink noise, 6 dB peaks

4. Calculated at 1M half-space at power handling input
